¶ Introduction

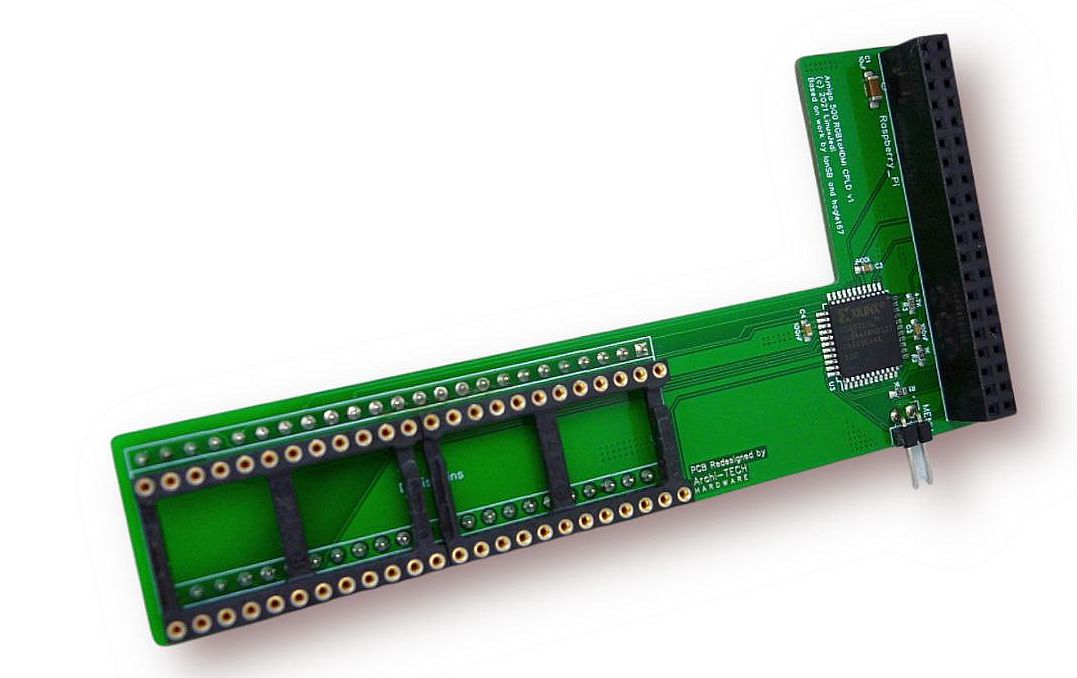

This adaptor uses a CPLD to pass the RGB and sync signals from the Amiga 500 Denise socket to the Rasperry Pi Zero. It derives the pixel clock in a very different way to the c0pperdragon design and therefore does not require a jumper for Denise / Super Denise and has no "sparkling" pixel issues. It also has the advantage of being firmware upgradable if there are any issues found in the logic. PCB was redesingen by our company with the consent of LinuxJedi.
¶ Pi Software Installation
The software on the Pi should be at least the latest 20210529 release from the main tree or the latest IanSB beta release extracted onto a micro SD card in FAT32 format.
You need to copy some canned profile files into place for the board:
Amiga_CPLD_Readme/Amiga_CPLD_Setup/profile_6-12_BIT_RGB.txtto the root of the SD cardAmiga_CPLD_Readme/Amiga_CPLD_Setup/Profiles/Default.txtto theProfilesdirectory
This resolves some issues with mode switching, particularly on NTSC machines. The profile copied will automatically set single_button_mode.
¶ Instalation in your Amiga 500
¶ Source
https://github.com/LinuxJedi/AmigaRGBtoHDMI/tree/main/Amiga500CPLD
